Illustrated Geospatial Map Manual

This manual explains the Map canvas introduced on the geospatial branch. It is for people browsing area-based reports, statistics, spatial datasets and ArcGIS/OGC services, and for pack builders deciding which geography metadata to supply.

Explorer remains a static browser application. Opening Map does not call an AI, geocoder or application server, but it currently requests four OpenStreetMap raster tiles. External record geometry is loaded only when a user selects Preview on demand. Read the beginner guide's current-basemap explanation for the privacy, availability and tile-policy limits.

The first screenshots use the local Pages build and the real 41,520-record UK Government APIs bundle. Preview screenshots use a deterministic demonstration bundle so success, failure and linked-only states can be reproduced without depending on a third-party service. The demonstration geometry is UI evidence, not an authoritative dataset.

Related guidance:

1. Open Map In The Current Context

Start with search and ordinary facets when you already know a subject or provider, then select Map from the canvas tabs. Map classifies the same active records rather than starting a parallel search.

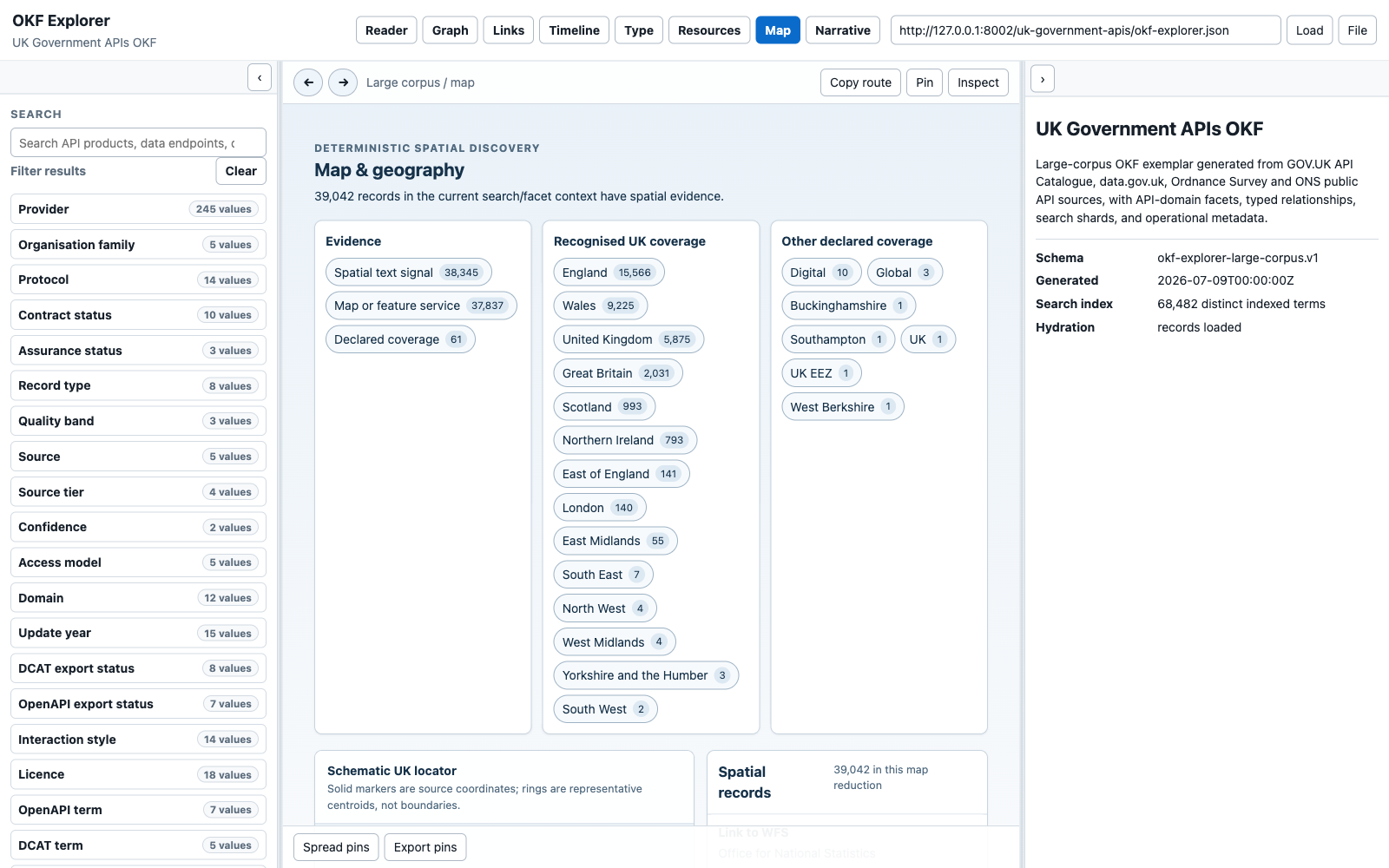

The Map canvas classifying the UK Government APIs bundle into evidence, recognised coverage and declared coverage

The three reduction groups mean different things:

Evidence describes why a record is spatial: supplied geometry, declared coverage, a map/feature service, a spatial file or a bounded text signal.
Recognised UK coverage is a deterministic match against the UK, Great Britain, nations and English regions.
Other declared coverage retains pack-supplied values that Explorer does not map to its small UK vocabulary.

A record can have more than one signal. The counts therefore overlap; they are not intended to sum to the total.

2. Reduce The Shared Result Set By Area

Select a place such as London. The Map summary, spatial-record list and the ordinary left-hand result list all reduce together.

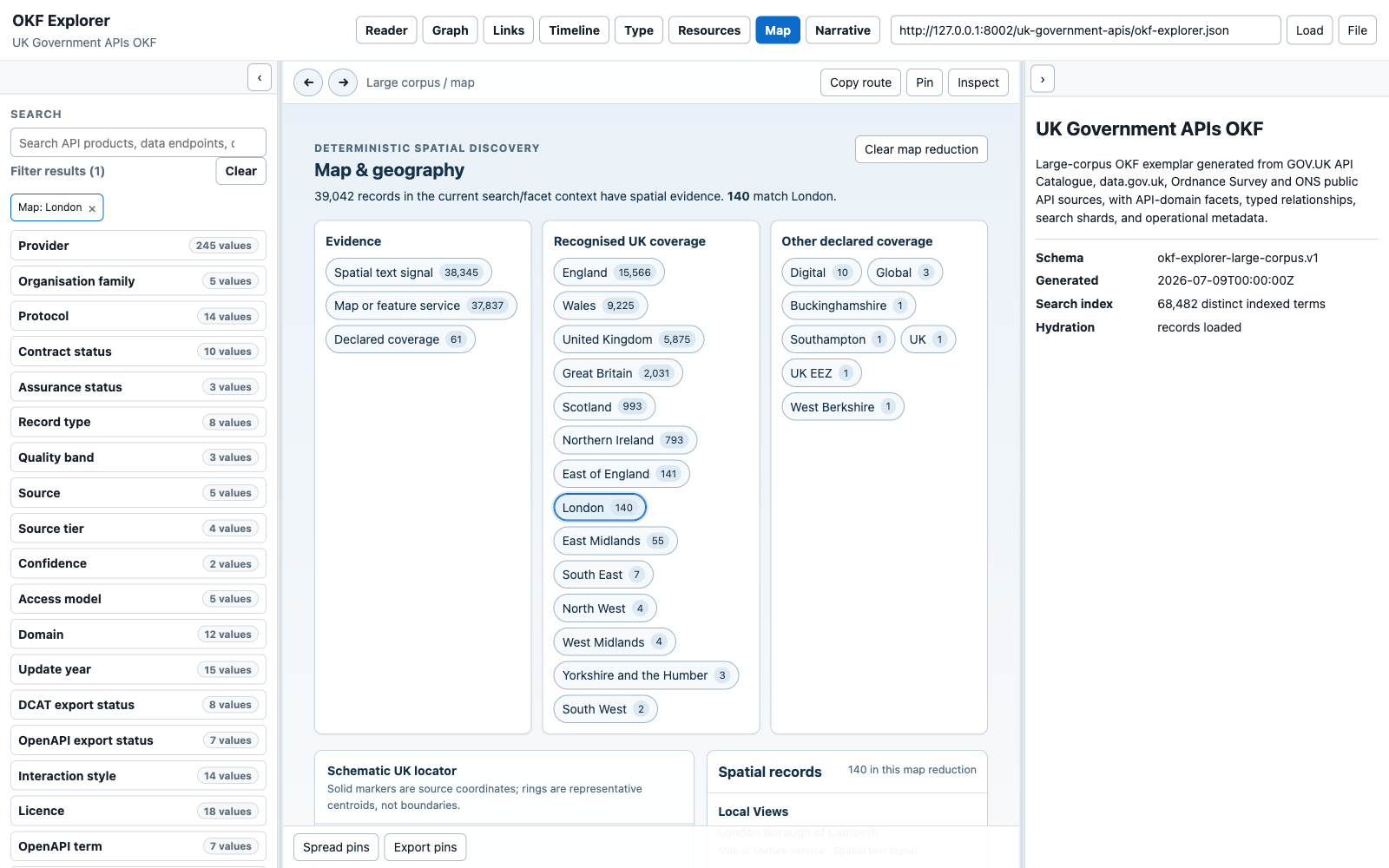

The London Map reduction showing 140 matching records and a durable geo URL parameter

The URL contains geo=area:london. That state:

survives reload and Back/Forward;
remains active when switching to Reader, Graph, Links, Timeline, Type or Resources;
can be cleared by selecting the active chip again, using Clear map reduction, or removing the active Map chip from the left panel; and
describes only this loaded pack, not every London dataset in existence.

Evidence reductions use values such as geo=signal:service; other declared coverage uses an encoded geo=coverage:... value.

3. Read The Locator Without Inventing Boundaries

The locator is deliberately schematic. It provides spatial orientation and selection using four live OpenStreetMap raster tiles when they are available, plus a local hand-authored outline, grid and markers. The remote tiles are context, not evidence, and the local overlay remains usable if they fail.

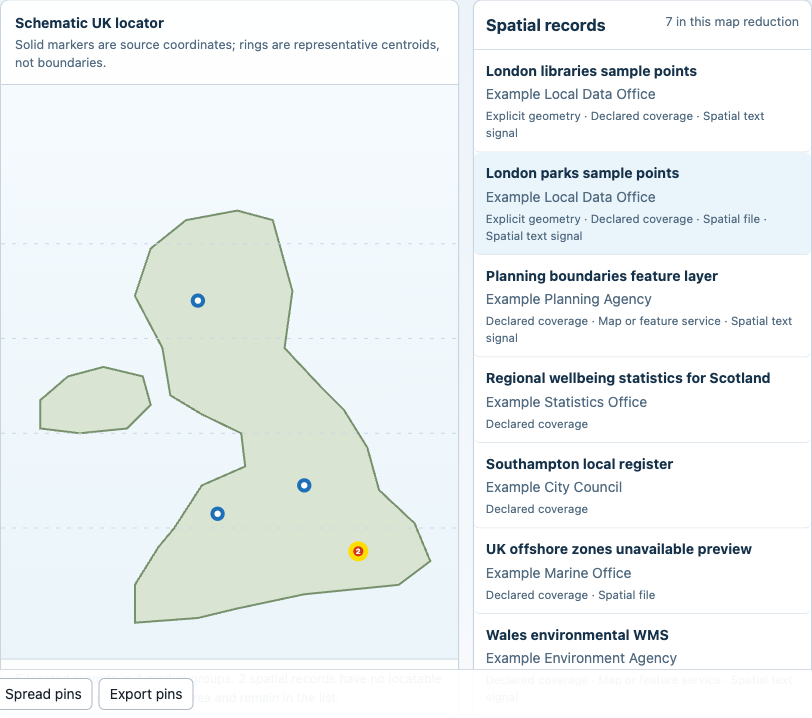

A selected mapped record with source-coordinate and representative-centroid conventions explained beside the locator

A solid marker represents a source coordinate, point geometry or supplied bounding-box centroid.
A ring represents a labelled representative centroid for a recognised area. It is not the area's boundary and does not prove record coverage at that point.
Coincident points are clustered and show a count.
Records with spatial evidence but no locatable coordinate or recognised area remain in the list and are counted explicitly.
Marker and list-row selection open the same Explorer route. The usual detail card, provenance, pinning and copy-route tools remain available.

Markers are keyboard focusable. Press Enter or Space to select one.

4. Inspect Why A Record Was Classified

The Selected spatial evidence panel lists every rule that matched, the specific detail and the source field. This makes classification reviewable: ARCGIS · Feature service, GeoJSON, a declared area, coordinates, or a text term such as boundaries are visible rather than hidden in a score.

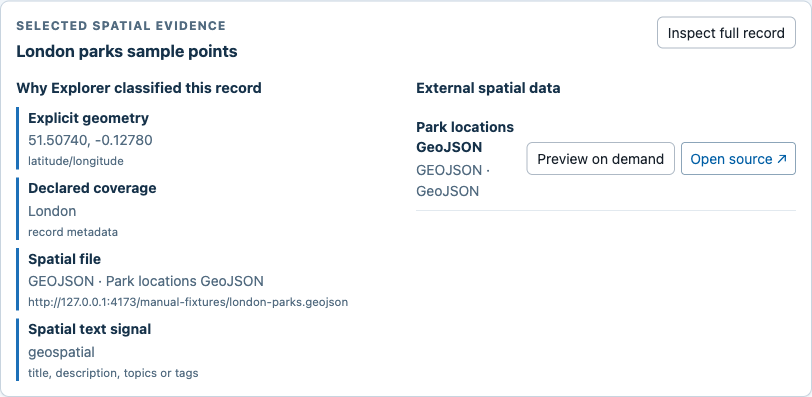

A selected record showing its classification evidence, representative-centroid caveat and external resources

Use this panel to distinguish:

discovery evidence from authority or fitness for use;
an exact point from an area navigation centroid;
a previewable JSON/ArcGIS resource from a linked-only spatial format; and
local pack metadata from a remote response retrieved later.

If there is no machine-readable spatial URL, Explorer says so and retains the record because area/text evidence can still be useful.

5. Preview Direct GeoJSON On Demand

For direct GeoJSON or JSON resources, select Preview on demand. Nothing is fetched before that action.

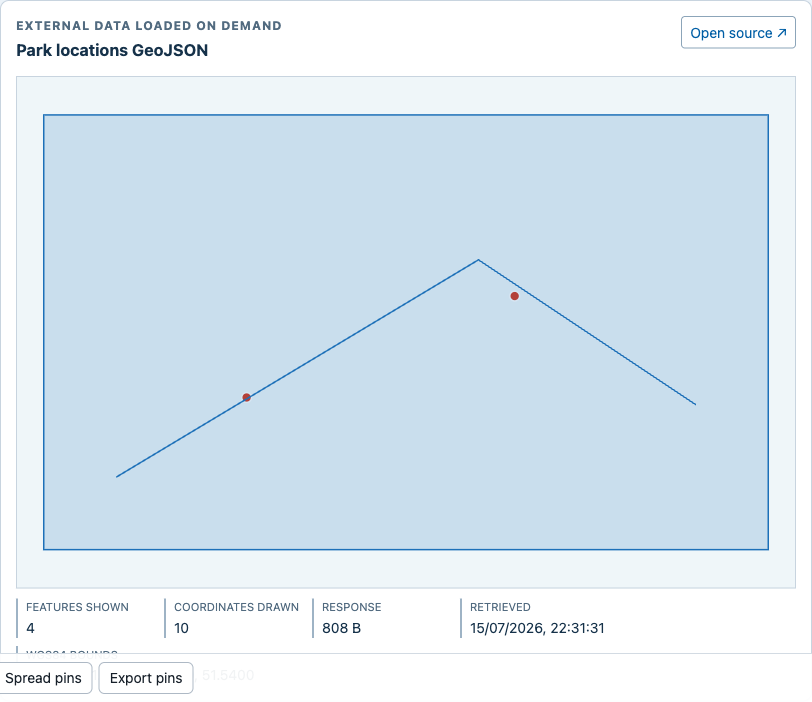

A bounded direct GeoJSON preview with feature, coordinate, response and WGS84 bounds metadata

The preview reports:

features shown and whether the feature cap was reached;
coordinates drawn and whether the drawing cap was reached;
response size and retrieval time;
discovered ArcGIS layer name when applicable; and
WGS84 bounds calculated from the rendered coordinates.

Explorer accepts supported GeoJSON point, line, polygon, multi-geometry and geometry-collection shapes. It renders remote properties only as data and retains the source link alongside the preview.

6. Recover When A Preview Is Unavailable

Browser CORS rules, availability, authentication, unsupported formats and response limits can prevent a preview. That is an expected progressive- recovery state, not a reason to discard the record.

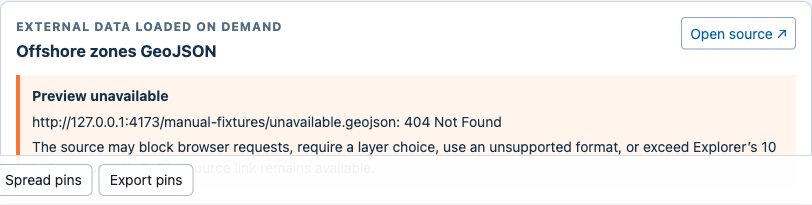

A failed preview explaining likely causes while preserving the external source route

Explorer keeps:

the local title, publisher, route and classification evidence;
a visible explanation of the failure;
the original Open source link in a new tab; and
the active search, facets and Map reduction.

WMS, WFS, WMTS, WCS, KML, GML, Shapefile and GeoPackage are currently discoverable and filterable but linked rather than parsed. Pack builders should not disguise credentials in resource URLs; Explorer removes common secret-like query parameters before displaying or requesting a geospatial resource.

7. Understand Empty And Bounded States

If the current search/facet context has no spatial evidence, Map explains how to widen the context or improve the pack. While a large record/resource index is loading, Map exposes a status message instead of presenting an empty result as final.

The spatial record list shows at most 160 rows and says when more exist. The locator groups coincident markers. Remote preview limits are 10 MiB, 100 features and 12,000 drawn coordinates. These bounds keep browser memory and interaction predictable; they are not statements about source completeness.

On a narrow screen, the locator, record list and evidence panels become a single column while retaining their headings and controls.

8. Improve A Pack For Map

Legacy coverage fields and resource formats work immediately, but generated packs should prefer explicit, source-backed fields:

{
  "spatial": {
    "geographies": [
      {
        "code": "E12000007",
        "name": "London",
        "level": "region",
        "source": "ONS",
        "vintage": "2025"
      }
    ],
    "bbox": [-0.5103, 51.2868, 0.334, 51.6919],
    "crs": "EPSG:4326",
    "derivation": "source-declared"
  }
}

Preserve the geography-code family, source release or epoch, exact/best-fit derivation, boundary variant and CRS. Map display uses WGS84; a pack may retain British National Grid as the analysis CRS. Never convert an Explorer text match or representative centroid into source-declared geometry.

Test And Review The Feature

The 18-scenario browser suite traces each state back to the story IDs in Map personas and user stories:

cd apps/okf-explorer
pnpm test:e2e

Run pnpm test as well for classifier, URL sanitisation, preview URL, cap and geometry-projection coverage. The broader publication gates are listed in Use the OKF Explorer.
